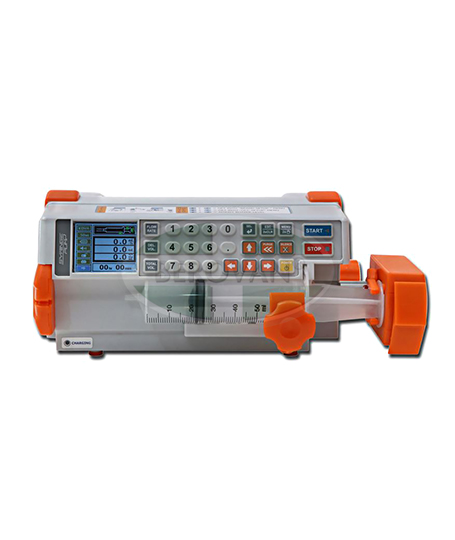

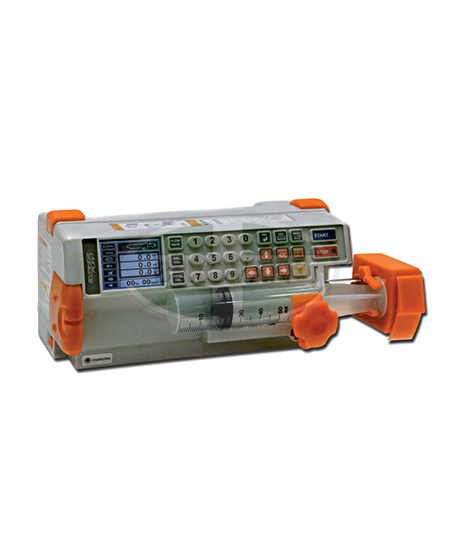

MS Syringe Pump SP8800

SKU: 130122
SP-8800 provides easy syringe installing through the one-touch method by slider hook, simple and easy setup process with its numerical silicon keypad. Color LCD displays infusion information dramatically shortcut key manages easy approach for frequent functions K.V.O. rate, purge rate, bolus, and anti-bolus can be set up as an operating application. Supplied with battery.

✓ Flexible flow volume setting
✓ Full program dosage features (optional): it automatically calculates flow rate by patient's weight, injection's mass and melting
✓ Keep Vein Open (K.V.O) feature: When reached to the preset value, it converts to low flow speed of 0.1ml/h automatically to prevent flow route clog due to blood coagulation
✓ Standard, compatibility with 5 major brands of syringes: Syringe brand setting feature enables you 5 choose, from following syringe brands: BD, TERUMO, PENTAFERTE, RAYS, KOVA. Each pump can be calibrated for up to 9 different syringes. Alarm and notification feature: It notifies errors and emergencies with LED light and buzzer. Simultaneous visual and audio alarm. Occlusion error range setting: You can set the pressure level of occlusion stage to High, Medium and Low by patient's age condition. Suitable also for VET use.

✓ IV clamp included
✓ Colour display
✓ Automatic set-up system (flow rate, time, delivery volume)
✓ Easy and quick installation of syringe, just in 5 seconds.
PRINT THIS IMAGE

Product Description

Flow volume setting range:
– Syringe 10ml: 0.1-300ml/h
– Syringe 20ml: 0.1-400ml/h
– Syringe 30ml: 0.1-500ml/h
– Syringe 50ml: 0.1-1200ml/h
Flow volume error margin: ±3%
Infusion limit volume range: 0.1 ~ 999.9mL (0.1 ml infusion interval)
Total estimated volume range: 0.1 ~ 999.9mL (0.1 ml infusion interval)
K.V.O rate (Vein maintaing function): 1 ~ 10 ml/h adjustable
Size: 220 x 130 x 108 mm
Weight: 2 kg
Rapid flow volume (Purge): 0.1 ~ 1200 ml/h adjustable
Bolus 0.1 ~ 1200 ml/h, 0.1 ~ 1000ml adjustable
Alarm Features: Occlusion, K.V.O (inclusion completion), standby, near empty, low battery, device malfunction (CPU error), clamp/handle lever/ slider disengaged, syringe disengaged.
Special features: Keypad lock, shortcut key, retain memory, remaining time, alarm repeat, open system, K.V.O., purge, bolus, anti bolus, occ. level. history call-back

Additional Information

Item #

130122
