| Electrical Rating | AC 110~ 120V, 60Hz AC 220~ 240V, 50/ 60Hz |
| Power Consumption | 90W |
| Maximum Pressure | 600 mmHg (adjustable) |
| Maximum Flow Rate | 24 LPM |
| Net Weight | 2.8 kg |
| Dimension | 352(L) x 206(W) x 192(H) mm |
| Sound Level | < 55 dB |

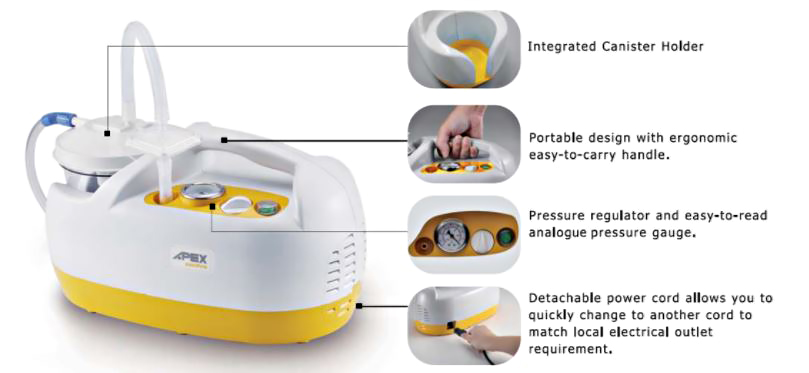

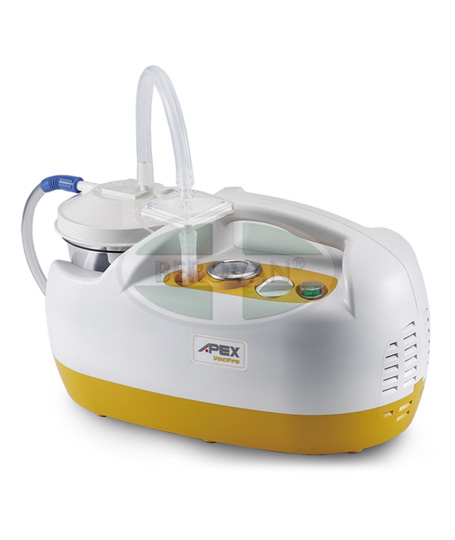

The VAC-series pump is Apex Medical’s most recent generation of portable suction units and has been designed to combine function with aesthetic appeal and meet the needs of today’s hygiene and infection control requirements. The VacPro is durable lightweight and versatile in the provision of general suction usage.
| Item # | 171341 |
|---|
Eminently suitable hospital wards and nursing care.
∙ The handle of the suction bottle is helpful for preventing the spill of waste liquid, which reduces infection risk.
∙ Light and quiet with long-life brushless DC motor.
∙ Having a cord reel requiring no AC adaptor keeps the outlet area clear and is helpful for carrying.
∙ The power switch is splash-poof.
| Electrical Rating | AC 110~ 120V, 60Hz AC 220~ 240V, 50/ 60Hz |
| Power Consumption | 100W |
| Maximum Pressure | 600 mmHg (adjustable) |
| Maximum Flow Rate | 46 LPM |
| Net Weight | 4.4 kg |
| Dimension | 352(L) x 206(W) x 192(H) mm |
| Sound Level | < 60 dB |
| Power Souce | AC100-120V / AC220-240V 50/60Hz |
| Class | ClassⅠ B-Type equipment |
| Power Consumption | 140VA(130W) |
| Suction Pump | Double AC Motor |
| Max. Suction | -80kPa (-60cmHg) |
| Exhaust Flow | 50Hz 38±2L/min 60Hz 45±2L/min |
| Suction Bottle | Two 3000mL (Polycarbonate Bottle) |
| Unit Size | 40×28×90cm |
| Power Souce | AC100-120V / AC220-240V 50/60Hz |
| Class | Class I B-Type equipment |
| Power Consumption | 140VA(130W) |
| Suction Pump | Double AC Motor |
| Max. Suction | -80kPa (-60cmHg) |
| Exhaust Flow | 50Hz 38±2L/min 60Hz 45±2L/min |
| Suction Bottle | 3000mL (Polycarbonate Bottle) |
| Unit Size | 40×28×90cm |
| Weight | 25kg |
| Power Source | AC100-120V / AC220-240V 50/60Hz |
| Class | Class II B-Type equipment |
| Power Consumption | 30VA (15W) |
| Suction Pump | Single Pump Bruchless DC Motor |
| Max. Suction Pressure | -80kPa (-60cmHg) |
| Exhaust Flow Volume | 15±2L/min |
| Suction Bottle | 750mL (polycarbonate) |
| Unit Size | 30.5×10×22.5cm |
| Weight | 1.9kg |
*Suction catheter is separate.
*BLUE CROSS Suction Units have been developed taking into account the delicate skin of children and some adults.
*At night, it may be advisable to run the unit on quiet SAVE mode(reducing exhaust air by 20%).
*Suction power can be easily adjusted using the control knob.
| Power Source | AC100-120V/AC220-240V (50/60Hz) DC12V car battery Built-in rechargeable battery (12V1500mAh) |
| Class | Class II B-Type equipment |
| Power Consumption | 30VA (15W) |
| Suction Pump | Single pump brushless DC motor |
| Max. Suction Pressure | -80kPa (-60cmHg) |
| Exhaust Air Volume | 15±2L/min |
| Suction Bottle | 750mL (polycarbonate) |
| Unit Size | 30.5×10×22.5cm |
| Weight | 2.2kg |
*BLUE CROSS Suction Units have been developed taking into account the delicate skin of children and some adults.
*At night, it may be advisable to run the unit on quiet SAVE mode(reducing exhaust air by 20%).
*Suction power can be easily adjusted using the control knob.
Eminently suitable for nursing care and nasala aspiration.
∙ BM-750S is good for suctioning mucus in the throat and useful as a nasal aspirator with optional accessories Silicone Olive MIERI.
∙ Light and quiet with long-life brushless DC motor.
∙ Having a cord reel requiring no AC adaptor keeps the outlet area clear and is helpful for carrying.
∙ The power switch is splash-poof.
| Power Source | AC100-120V / AC220-240V 50/60Hz |
| Class | Class II B-Type equipment |
| Power Consumption | 45VA (25W) |
| Suction Pump | Double Pump Brushless DC Motor |
| Max. Suction Pressure | -80kPa (-60cmHg) |
| Exhaust Air Volume | 22±2L/min |
| Suction Bottle | 1500mL (polycarbonate) |
| Unit Size | 38×15.5×26cm |
| Weight | 2.8kg |
*BLUE CROSS Suction Units have been developed taking into account the delicate skin of children and some adults.
*At night, it may be advisable to run the unit on quiet SAVE mode(reducing exhaust air by 20%).
*Suction power can be easily adjusted using the control knob.
