Technical Specifications:
| Max. Suction Pressure | -80kPa |
| Exhaust Air Volume | 12/Lmin |
| Suction Bottle | 1200ml (Polycarbonate) |
| Power Source | AC100V 50/60Hz |
| Power Consumption | 45VA |
| Pump | Diaphragm/Double Pump |
| Motor | Brushless DC motor |
| Unit Size | W460 x D156 x H270mm |
| Weight | 3.5kg |
| Accessories | Suction bottle set, Handle set, Auxiliary bottle set, Catheter holder, Suction tube(1.5m) |

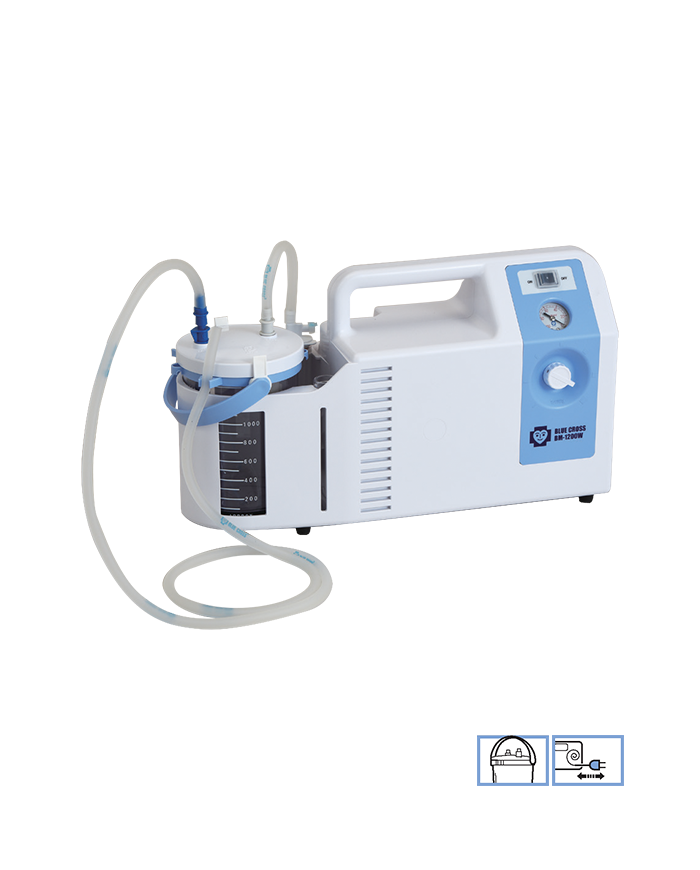

| Item # | 172001 |
|---|
| Power Souce | AC100-120V / AC220-240V 50/60Hz |
| Class | ClassⅠ B-Type equipment |
| Power Consumption | 140VA(130W) |
| Suction Pump | Double AC Motor |
| Max. Suction | -80kPa (-60cmHg) |
| Exhaust Flow | 50Hz 38±2L/min 60Hz 45±2L/min |
| Suction Bottle | Two 3000mL (Polycarbonate Bottle) |
| Unit Size | 40×28×90cm |
| Power Source | AC100-120V / AC220-240V 50/60Hz |
| Class | Class II B-Type equipment |
| Power Consumption | 30VA (15W) |
| Suction Pump | Single Pump Bruchless DC Motor |
| Max. Suction Pressure | -80kPa (-60cmHg) |
| Exhaust Flow Volume | 15±2L/min |
| Suction Bottle | 750mL (polycarbonate) |
| Unit Size | 30.5×10×22.5cm |
| Weight | 1.9kg |
*Suction catheter is separate.
*BLUE CROSS Suction Units have been developed taking into account the delicate skin of children and some adults.
*At night, it may be advisable to run the unit on quiet SAVE mode(reducing exhaust air by 20%).
*Suction power can be easily adjusted using the control knob.
| Power Source | AC100-120V / AC220-240V 50/60Hz |
| Class | Class II B-Type equipment |
| Power Consumption | 45VA (25W) |
| Suction Pump | Double Pump Brushless DC Motor |
| Max. Suction Pressure | -80kPa (-60cmHg) |
| Exhaust Air Volume | 22±2L/min |
| Suction Bottle | 1500mL (polycarbonate) |
| Unit Size | 38×15.5×26cm |
| Weight | 2.8kg |
*BLUE CROSS Suction Units have been developed taking into account the delicate skin of children and some adults.
*At night, it may be advisable to run the unit on quiet SAVE mode(reducing exhaust air by 20%).
*Suction power can be easily adjusted using the control knob.
| Electrical Rating | AC 110~ 120V, 60Hz AC 220~ 240V, 50/ 60Hz |
| Power Consumption | 100W |
| Maximum Pressure | 600 mmHg (adjustable) |
| Maximum Flow Rate | 46 LPM |
| Net Weight | 4.4 kg |
| Dimension | 352(L) x 206(W) x 192(H) mm |
| Sound Level | < 60 dB |
Eminently suitable for nursing care and nasala aspiration.
∙ BM-750S is good for suctioning mucus in the throat and useful as a nasal aspirator with optional accessories Silicone Olive MIERI.
∙ Light and quiet with long-life brushless DC motor.
∙ Having a cord reel requiring no AC adaptor keeps the outlet area clear and is helpful for carrying.
∙ The power switch is splash-poof.
| Power Source | AC100-120V/AC220-240V (50/60Hz) DC12V car battery Built-in rechargeable battery (12V1500mAh) |
| Class | Class II B-Type equipment |
| Power Consumption | 30VA (15W) |
| Suction Pump | Single pump brushless DC motor |
| Max. Suction Pressure | -80kPa (-60cmHg) |
| Exhaust Air Volume | 15±2L/min |
| Suction Bottle | 750mL (polycarbonate) |
| Unit Size | 30.5×10×22.5cm |
| Weight | 2.2kg |
*BLUE CROSS Suction Units have been developed taking into account the delicate skin of children and some adults.
*At night, it may be advisable to run the unit on quiet SAVE mode(reducing exhaust air by 20%).
*Suction power can be easily adjusted using the control knob.
| Electrical Rating | AC 110~ 120V, 60Hz AC 220~ 240V, 50/ 60Hz |
| Power Consumption | 90W |
| Maximum Pressure | 600 mmHg (adjustable) |
| Maximum Flow Rate | 24 LPM |
| Net Weight | 2.8 kg |
| Dimension | 352(L) x 206(W) x 192(H) mm |
| Sound Level | < 55 dB |
| Power Souce | AC100-120V / AC220-240V 50/60Hz |
| Class | Class I B-Type equipment |
| Power Consumption | 140VA(130W) |
| Suction Pump | Double AC Motor |
| Max. Suction | -80kPa (-60cmHg) |
| Exhaust Flow | 50Hz 38±2L/min 60Hz 45±2L/min |
| Suction Bottle | 3000mL (Polycarbonate Bottle) |
| Unit Size | 40×28×90cm |
| Weight | 25kg |
