MS Stretcher-Hydraulic W/ Trendelenburg

SKU: 170840

FEATURES

✓ Chest X-ray Platform
✓ Stainless Collapsible Siderails with Safety Lock

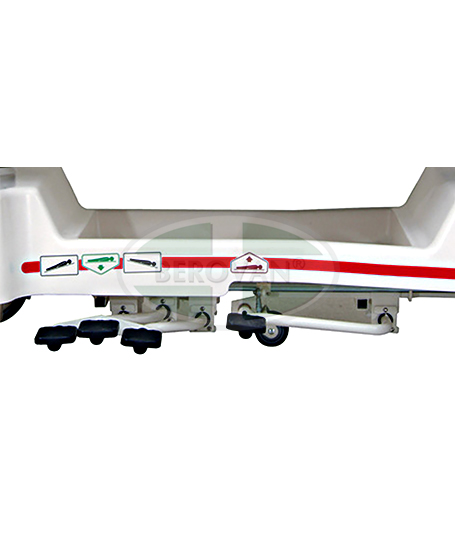

✓ Foot Pedals (on Both Sides) for Hydraulic Hi-Low and Trend Controls at Any Height
✓ Backrest Position Handle (Gas-Spring 0~90 degrees)
✓ Two-Step Foot Position Lever (Up to 15 degrees)
✓ Crank Operation for Knee Position at Foot-End

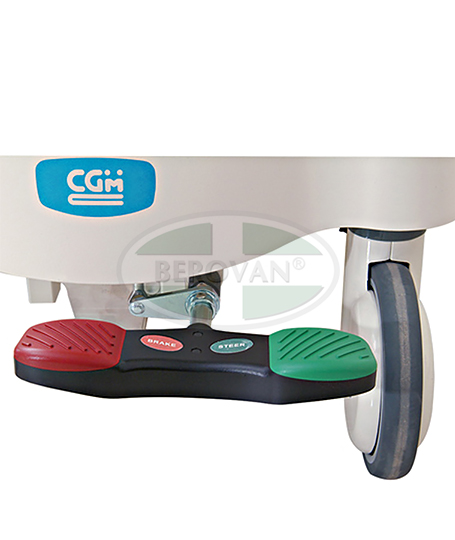

✓ Central Braking and Steering System
✓ 8-inch Central Brake Casters with Dust-Proof Cover
✓ ABS Bottom Cover with Storage Bin
✓ Four ABS Corner Bumper
✓ Six Drainage Bag Hooks
✓ Ten Restraint Strap Holders
✓ Seat Position
✓ Retractable Fifth-Wheel Steering (Optional)
✓ Trend & Rev. Trend Function
PRINT THIS IMAGE

Product Description

Dimension

∙Overall Size L 210 x W 74 cm
∙Sleeping Surface L 190 x W 64 cm
∙Side Rail L 120 x W 37 cm

Positioning

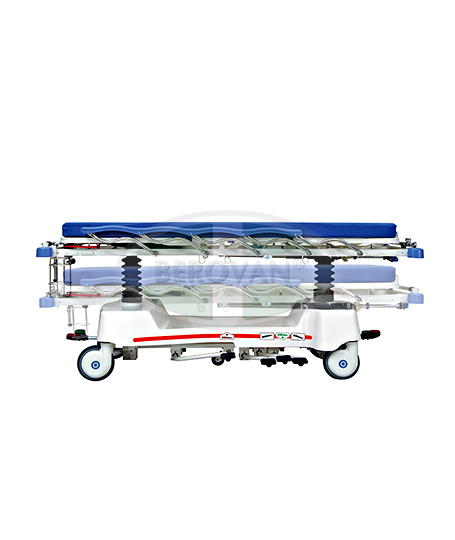

∙Hi-Low Range 56 – 89 cm
∙Backrest 0 – 90°
∙Knee Gatch 0 – 40°
∙Trend / Reverse Trend 0 ± 16°
∙Max Weight Capacity 230 kgs (500lbs)

Standard Accessories

∙Driving Handle 1ST
∙Fixed I.V. Pole 2PC

Optional Accessories
∙Mattress
∙Mattress Cover
∙Fifth Wheel
∙0.5 m³ Oxygen Bottle Holder
∙Name Card Holder
∙Foot-End Shelf

Additional Information

Item #

170840
