MS Stretcher Hydraulic With IV Pole & Mattress E8 CH
SKU:
172020
PRINT THIS IMAGE

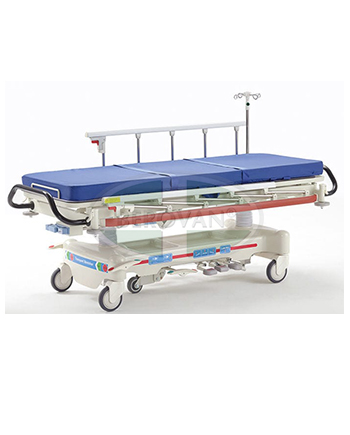

E-8 Luxurious Hydraulic Stretcher
Size: 2045(L) x 790(W) x 605(H)~920mm- The main platform of the stretcher which is equipped with imported double rise-and-fall hydraulic pump systems with is made of X-ray revealed material.
- Central locking system and the steering castor make the stretcher move steadily, reliably, and lightly.
- The stretcher has the function of hi-low, Trendelenburg, and reverse-Trendelenburg which are controlled by the pedals at the two sides of the stretcher.
- The rear of the stretcher has the central locking pedals, the bottom cover is made of ABS material and shaped once for all which can be easily cleaned.
- The stretcher is equipped with infusion poles, drainage hooks, and collapsable aluminum alloy side rails.
- It is the best choice for the emergency room and ICU ward for transferring patients.
