Additional Information
Item # | 130069 |
---|
Safe, Comfortable, and Hygienic Coated with vinyl fireproof, anti-bacterial, and anti-fungal according to the Medical Devices Directive. |
|
Human Centered Design All the body buffer accessories have been designed according to the anthropometry of the patient's body. |
Length and width of table top | 2100mm/480mm |
Min. & Max. height of table top | 800mm/1040mm |
Trendelenburg / Reverse trendelenburg | ≥25° / ≥25° |
Lateral tilting | Left≥ 18° Right≥ 18° |
Leg rest adjustment | Down≥90° |
Back rest adjustment | Up≥75° Down≥10° |
Kidney bridge elevating | ≥120mm |

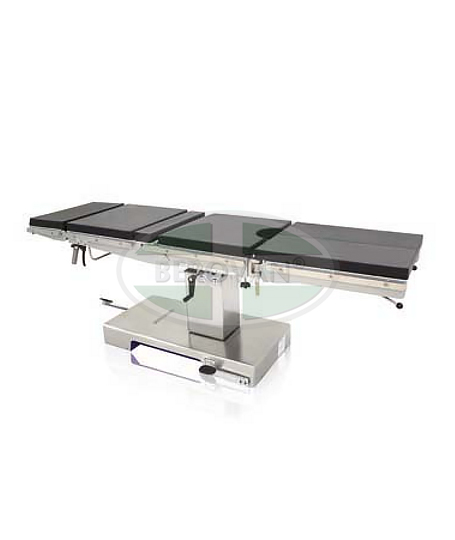

A cost-effective, multi-performance operating table holding up to 297Kg loading, adaptable to meeting different surgery requirement.
✓ Premium Quality Material
∙ Table frame is specially coated, other exposed steel is stainless steel SUS304
∙ Easy to clean and disinfect
✓ High-Efficiency Built-in Battery
∙ Imported from Panasonic
∙ Maximum 15 days working time
∙ No request for AC power to increase surgery safety
✓ Perfect X-ray Access

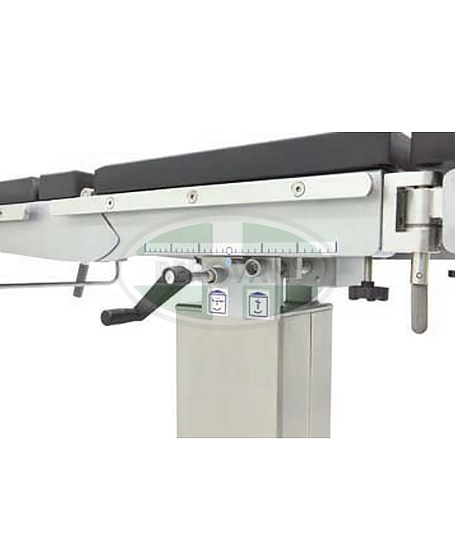

∙Remarkable 300mm longitudinal shifting capability create perfect X-ray access
✓ Ergonomic Adjustment
∙ Convenient design for wrench of leg plate and head plate, move leg and head plate by one hand
∙ Imported gas springs guarantee smooth movement
∙ Imported round-hole clamps, easy to lock and unlock accessories, safe time during operation
∙ Adjustable table height (680-950mm) provides comfortable working condition
✓ Surgical Configuration
∙ Flex and re-flex function
∙ Table angles and section lengths can be adjusted within a wide range. 6 standard accessories and 13 optional ones
∙ A smart combination of all these meets various surgical needs
✓ Safety
∙ Control panel power off automatically when no operation over 1 minute, avoid any misoperation
✓ Ergonomic Adjustment
∙ Convenient design for wrench of leg plate and head plate, move leg and head plate with one hand
∙ Imported gas springs guarantee smooth movement
∙ Imported round-hole clamps, easy to lock and unlock accessories, safe time during operation
∙ Adjustable table height (680-950mm) provides comfortable working condition

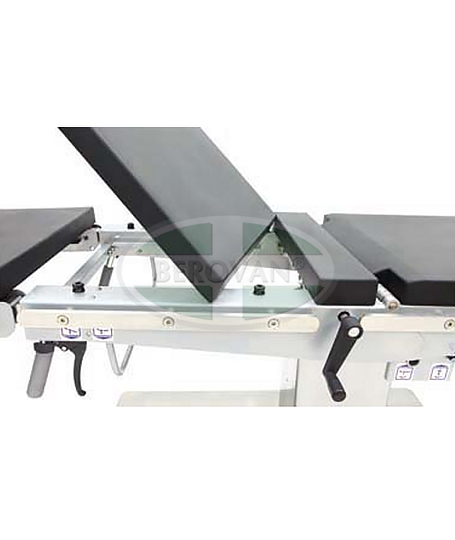

✓ Built-in Elevator Kidney-bridge
∙ No negative effect on X-ray radiolucency, support kidney, and gallbladder surgery efficiently
Length and width of table top | 2000mm/500mm |
Min. & Max. height of table top | 780mm/1020mm |
Trendelenburg / Reverse trendelenburg | ≥22° / ≥22° |
Lateral tilting | Left≥ 22° Right≥ 22° |
Leg rest adjustment | Down≥85° Outward≥90° |
Back rest adjustment | Up≥75° Down≥15° |
Kidney bridge elevating | Table top sweus upward ≤135° |
Safe, Comfortable, and Hygienic Coated with vinyl fireproof, anti-bacterial, and anti-fungal according to the Medical Devices Directive. |
|
User Friendly Remote Control The remote control has been designed to be easy to use intuitively and improve efficiency. |
|
Human Centered Design All the body buffer accessories have been designed according to the anthropometry of the patient's body. |
Length and width of table top | 2100mm/480mm |
Min. & Max. height of table top | 800mm/1040mm |
Trendelenburg / Reverse trendelenburg | ≥25° / ≥25° |
Lateral tilting | Left≥ 18° Right≥ 18° |
Leg rest adjustment | Down≥90° |
Back rest adjustment | Up≥75° Down≥10° |
Kidney bridge elevating | ≥120mm |
