MS Operating Table-Electric W/ Reverse Trendelenburg 5250E

SKU: 130201


Safe, Comfortable, and Hygienic
Coated with vinyl fireproof, anti-bacterial, and anti-fungal according to the Medical Devices Directive.
User Friendly Remote Control
The remote control has been designed to be easy to use intuitively and improve efficiency.
Human Centered Design
All the body buffer accessories have been designed according to the anthropometry of the patient's body.
PRINT THIS IMAGE

Product Description

Construction
A combination of high quality steel and stainless steel. 		Accessories:
– foot support (1 pair)
– shoulder mount (1 pair)
– lateral body support (1 pair)
– arm support (1 pair)
– anesthesia display frame (1 set)
Materials
Manufactured according to medical device directive using high quality foam, coated with vinyl without edge seam, anti bacterial, anti fungus, and flame retardant.		 Castor
Four casters 3 ” Epoxy powder coating
Position
Position: 840 – 1040 mm
Trendelenburg / Anti Trendelenburg: slope -18 ° / 18 ° adjustable with crank
Side slope: -20 ° / 20 ° operated with crank
Head piece: slope -20 ° / 40 °. Compatible for X-ray.
Section of back: slope 0 ° / 70 °. Compatible for X-ray.
Foot section: slope 0 ° / 90 ° set manually with shelf system
Kidney Position: arranged by gas spring mechanism. 		Painting Load Max 200 kg
Net Weight ± 188 kg

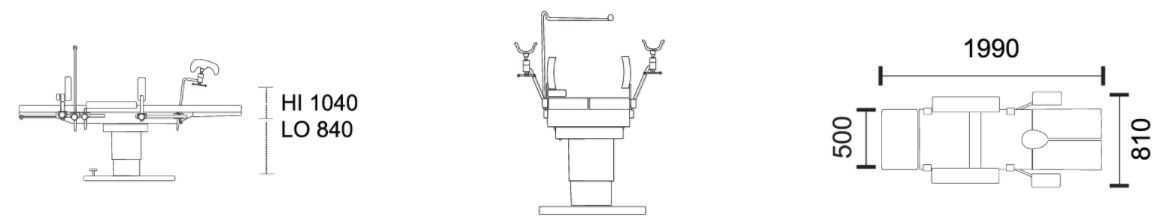

Dimensions (P) 1990 mm x (L) 810 mm x (T) 840-1040 mm

Additional Information

Item #

130201
